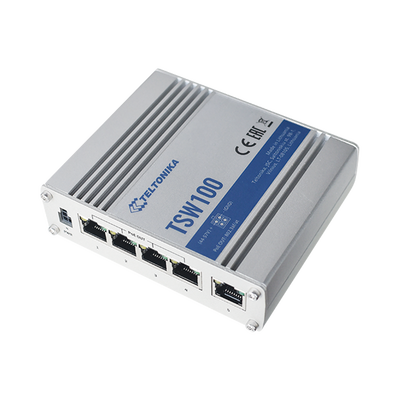

TSW100, Switch Gigabit Ethernet no administrable compatible con Power-over-Ethernet.

FUNCIONES

ETHERNET

• LAN

  5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad

POE

• PoE ports

  Port 1- 4

• PoE standards

  802.3af and 802.3at

• PoE Max Power per Port (at PSE)

  30 W

• PoE Power Budget (at PSE)

  120 W

PERFORMANCE SPECIFICATIONS

• Bandwidth (Non-blocking)

  10 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

POWER

• Connector

  4-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC

• PoE-out input voltage range

  44 – 57 VDC

• Power consumption

  Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W

PHYSICAL INTERFACES

• Ethernet

  5 x RJ45 ports, 10/100/1000 Mbps

• Status LEDs

  1 x Power LED, 10 x LAN status LEDs

• Power

  1 x 4-pin power connector

• Other


  1 x Grounding screw


PHYSICAL SPECIFICATION

• Casing material

  Full aluminum housing

• Dimensions (W x H x D)

  115 x 32 x 95 mm

• Weight

  350 g

• Mounting options

  DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  10% to 90% non-condensing

• Ingress Protection Rating

  IP30
