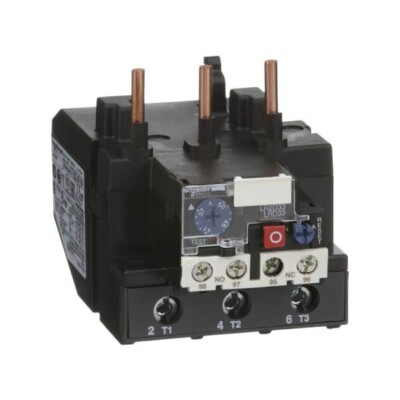

thermal overload relay for motor – TeSys LR.D – 30…40 A – class 10A LR2D3355
Availability:
9 disponibles
Ficha técnica del Producto
MXN$ 977.09 +IVA
9 disponibles
CompararLR2D3355
| Main | |
|---|---|
| range of product | TeSys D |
| device short name | LR2D |
| product or component type | Thermal overload relay |
| relay application | Motor protection |
| protection type | BS fuse 5 A – for control circuitGB2 circuit breaker 5 A – for control circuitGG fuse 5 A – for control circuit |
| connections – terminals | Control circuit: screw clamp terminals 1 x 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 x 1…2.5 mm²flexible without cable endControl circuit: screw clamp terminals 2 x 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 2 x 1…2.5 mm²flexible without cable endControl circuit: screw clamp terminals 2 x 1…2.5 mm²solid without cable end |
| quantity per set | Set of 10 |
| Complementary | |
|---|---|
| network frequency | 50/60 Hz |
| mounting support | Plate, with EverLink power terminal blockRail, with EverLink power terminal block |
| tripping threshold | 1.14 +/-0.06 In A conforming to IEC 60947-4-1 |
| surge withstand | 6 kV conforming to IEC 60801-5 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz for power circuit conforming to IEC 60947-4-1 |
| phase failure sensitivity | Tripping current I 30 % of Ir on one phase, the others at Ir conforming to IEC 60947-4-1 |
| tightening torque | Control circuit: 1.7 N.m on screw clamp terminals |
| height | 121 mm |
| width | 75 mm |
| depth | 100 mm |
| Environment | |
|---|---|
| standards | UL 508EN 60947-5-1Directive ATEX 94/9/ECCSA C22.2 No 14IEC 60947-4-1EN 60947-4-1IEC 60947-5-1 |
| product certifications | CCCRINAGLBVLROS (Lloyds register of shipping)DNVATEX INERISGOSTCSAUL |
| protective treatment | TH conforming to IEC 60068 |
| IP degree of protection | IP2x conforming to VDE 0106 |
| ambient air temperature for operation | -20…60 °C conforming to IEC 60947-4-1 |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| shock resistance | 15 gn 11 ms conforming to IEC 60068-2-7 |
| vibration resistance | 6 gn on plate conforming to IEC 60068-2-6 |
| dielectric strength | 6 kV 50 Hz conforming to IEC 60255-5 |
| Packing Units | |
|---|---|
| Package 1 Weight | 0.496 kg |
| Package 1 Height | 0.780 dm |
| Package 1 width | 1.200 dm |
| Package 1 Length | 0.850 dm |
| Contractual warranty | |
|---|---|
| Warranty | 18 months |
| Marca |
|---|
